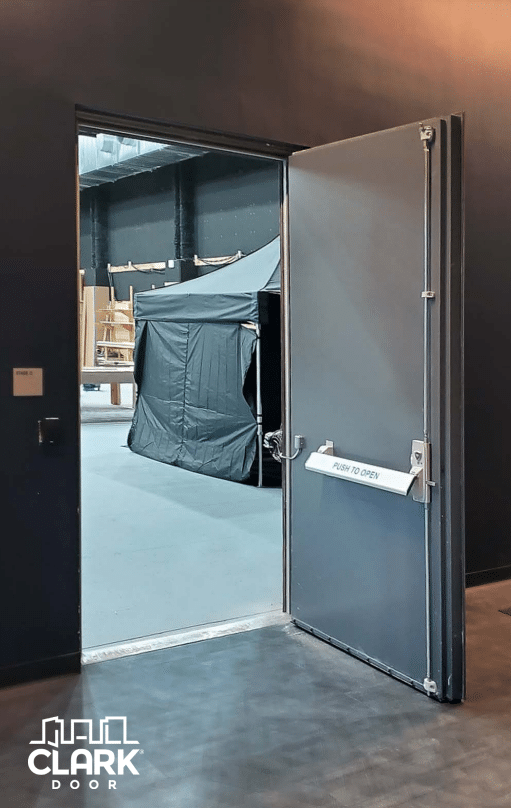

Swing Acoustic Doors
Key Features
- Fire-Rated Acoustic Steel Swing Panel
- Fire-Rated Acoustic Steel Frame
- Bottom and Perimeter Seals
- Threshold and Astragal Pairs
- Acoustic Glazing, Hinges, and Latch
Major Benefits
-
Proven Performance
Independently lab-tested acoustic door and frame assemblies comply with the most up-to-date sound transmission loss standards.
-
Reliable Security
1 ยพ inch thickness delivers exceptional protection against noise distractions in entertainment venues, machine rooms, and testing facilities.
-
Premium Durability
Lightweight panel engineering combined with acoustic sealing systems are backed by a 5-year warranty.
General Specifications
- Sound Transmission Class: STC 40 to STC 61
-
Material:
- Standard Specification for Steel Sheet, Zinc-Coated
(Galvanized) or Zinc-Iron Alloy-Coated - Optional: Stainless steel
- Standard Specification for Steel Sheet, Zinc-Coated
- Insulation: Composition of appropriate insulation
- Guides / Frames:ย Corrosion-resistant multi-composite
- Door Operation: Manual
- Door Leafs Options: Single or Double
- Optional Safety:ย FR shielding / bullet-resistance
- Fire Rating: Up to 180 min
Door Colors

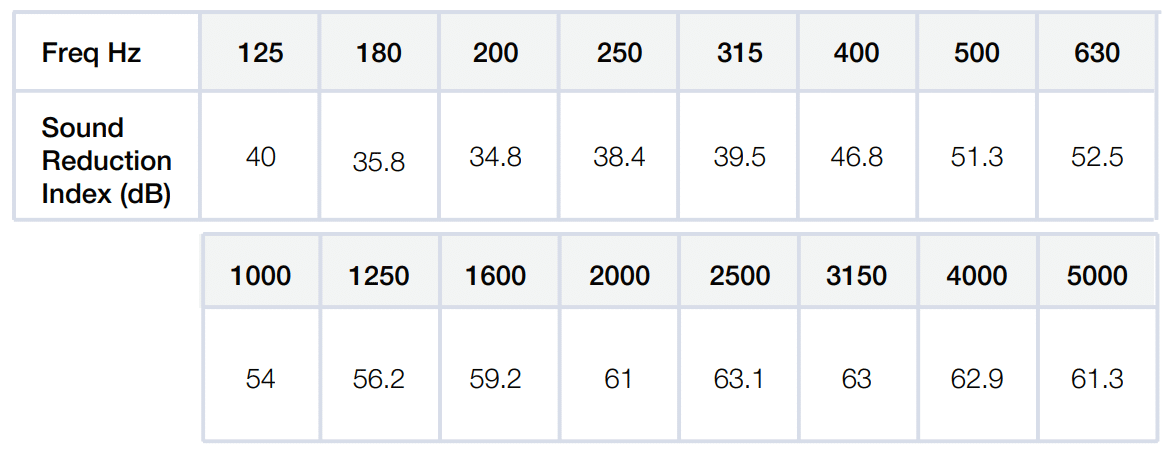

Sound Insulation

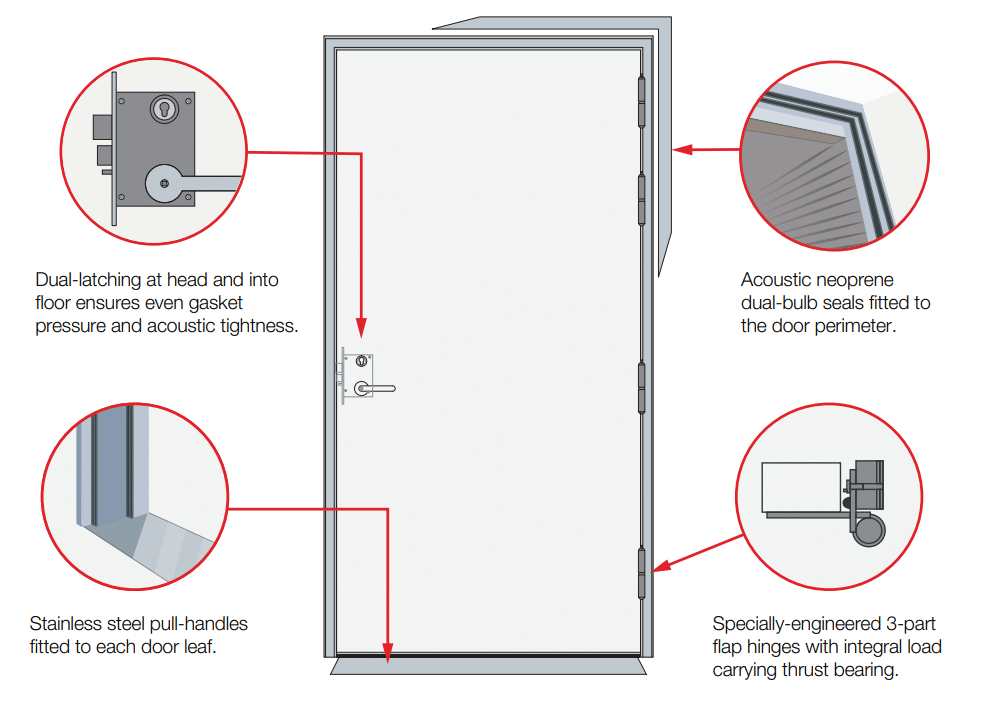

Product Overview
