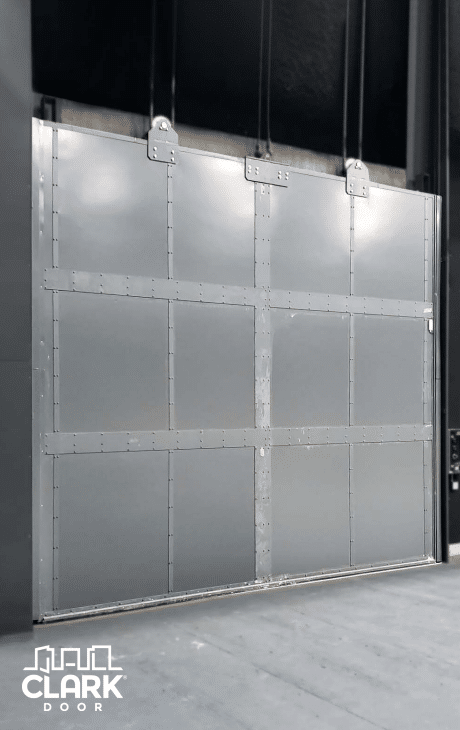

Vertical Acoustic Doors
Key Features
- Fire-Rated Acoustic Steel Panels
- Counterbalanced Vertical Sliding System
- Instant-Stop Wireless Safety Edge
- Braked Motor and Safety Cable
- Constant Contact Control Buttons
Major Benefits
-
Proven Performance
Independently lab-tested acoustic door and sliding assemblies comply with the most up-to-date sound transmission loss standards.
-
Advanced Security
Controlled acceleration and deceleration cycles and proprietary sealing system ensures secure operation in entertainment venues, machine rooms, and testing facilities.
-
Custom Functionality
Innovative vertical sliding design and space-saving assembly delivers clear, unobstructed doorway access.
General Specifications
- Sound Transmission Class: Up to STC 60
- Material: Plastisol, polyester powder-coating, and stainless steel finishes
- Insulation: Composition of appropriate insulation
- Guides / Frames:ย Corrosion-resistant multi-composite
- Door Operation: Direct-drive Motor
- Control Panel:ย Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Power Supply:ย 208/230/480 VAC | 3HP / 60 Hz.
- Motor Mounting Options: Motor can be mounted right or left side of the door.
- Optional Safety:ย FR shielding / bullet-resistance
- Fire Rating: Max. 120 min
- Optional Pass Door: Large acoustic doors can be designed to incorporate a pedestrian door.
- Door Leafs Options: Single / double / triple vertical sliding
Door Colors

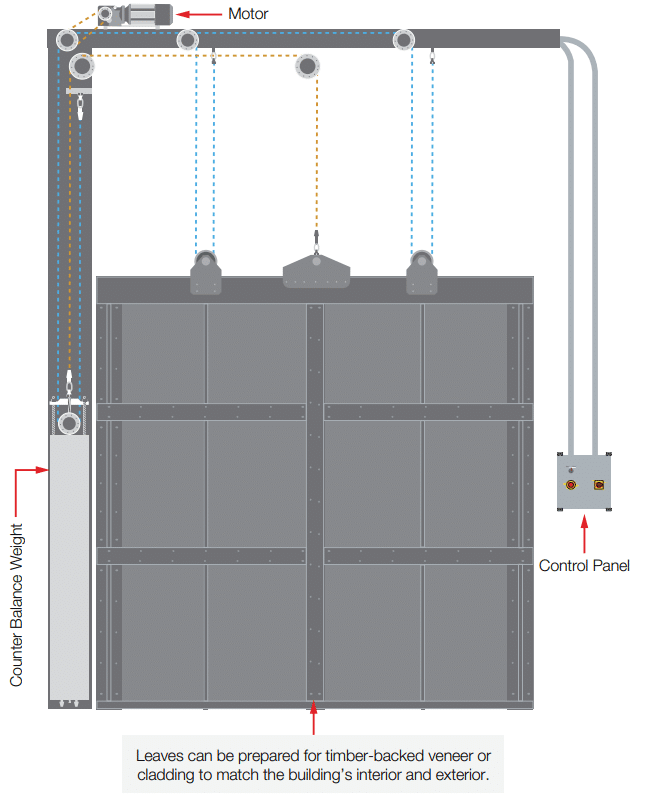

Technical Drawing
