Manual Sliding Door Thermacleanยฎ MโSeries
Key Features
- Stucco-Embossed Galvanized Steel Panels
- Precision Sealing and Patented Roller System
- Tear-Resistant, Adjustable Gaskets
- Extruded Aluminum Door Frame
- Two Million Cycle Power Operator
Major Benefits
-
Exceptional Performance
Tight-sealing capability and strong construction is designed to safely handle applications of up to 100ยฐF delta T.
-
Proven Durability
High cycle rating, tear-resistant parts, and strong frame ensure product longevity, with a 5-year limited warranty.
-
Advanced Functionality
Power operator combined with reversing edge and built-in sensing switching delivers smooth and convenient gliding action.
General Specifications
- Standard Size: 11โ W x 14โ H
- Cold Resistance: -40 ยบF
- High Temperature: 100 ยบF
- Door Operation: Direct-drive motor
- Hardware: Corrosion-resistant
- Insulation: Door leaves to be filled with 4" of non-CFC polyurethane insulation with an R value of 28 at 40ยฐF. Frame to be insulated with polystyrene inserts.
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Panel mounted on/off indicator light
- NEMA 4X enclosure
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz.
- Performance Cycles: 2,000,000
- Motor Mounting Options: Motor can be mounted right or left side of the door.
- Activation: Remote control, radar sensors, induction loop, pull cord / switch, proximity sensors, key switch, digital pad. Padlocking provisions on front or back of door with safety release on opposite side.
- Safety: Reverse sensing edge.
Metal Cladding

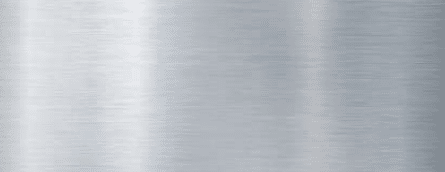

Stainless Steel

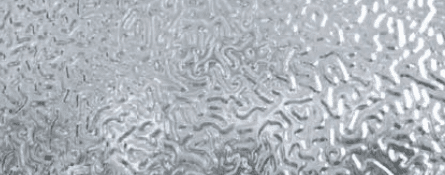

Stucco Embossed

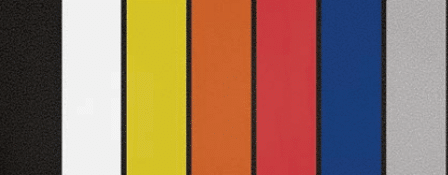

Galvanized Steel
(color options available)

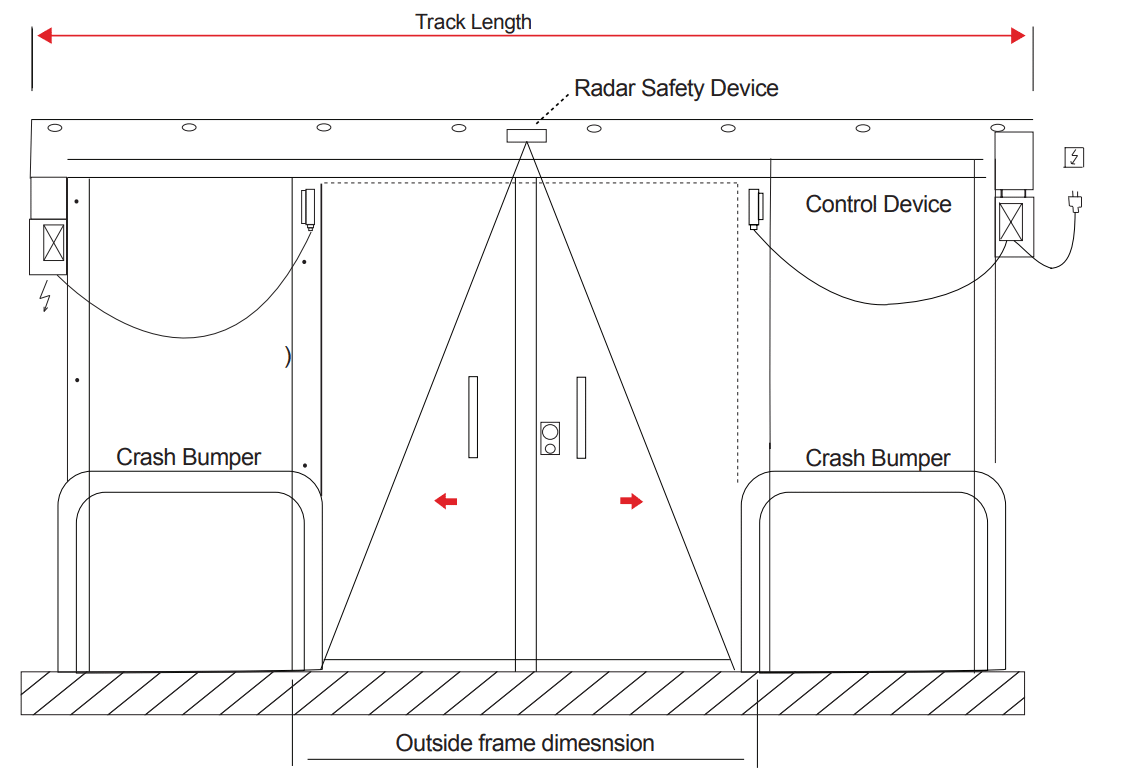

Technical Drawing

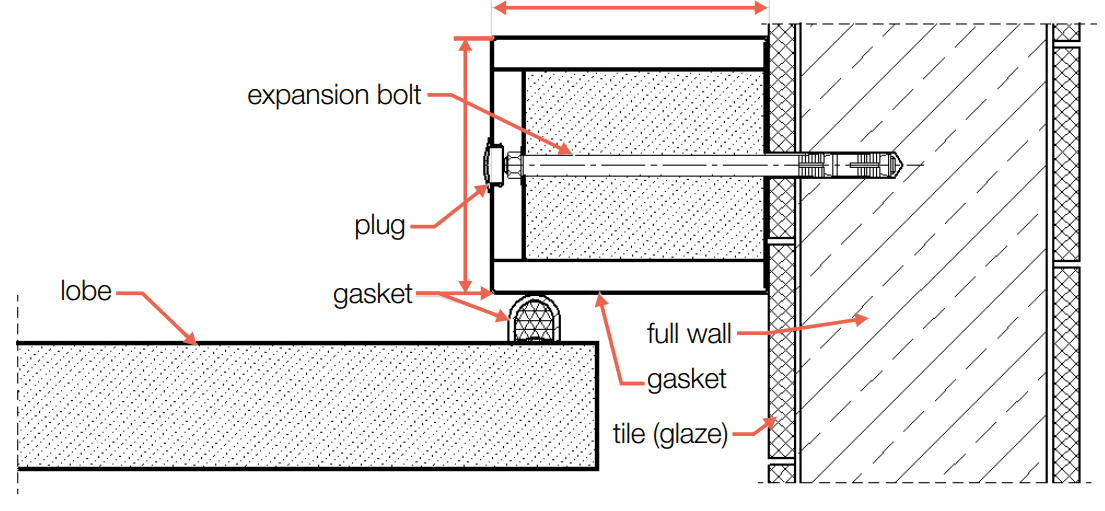

Block Frame
12" x 14" sealed glass
Cooler Door: 2 layer, 1" thick
Freezer Door: 3 layer, 1โ thick with 120 V.A.C. heat film
