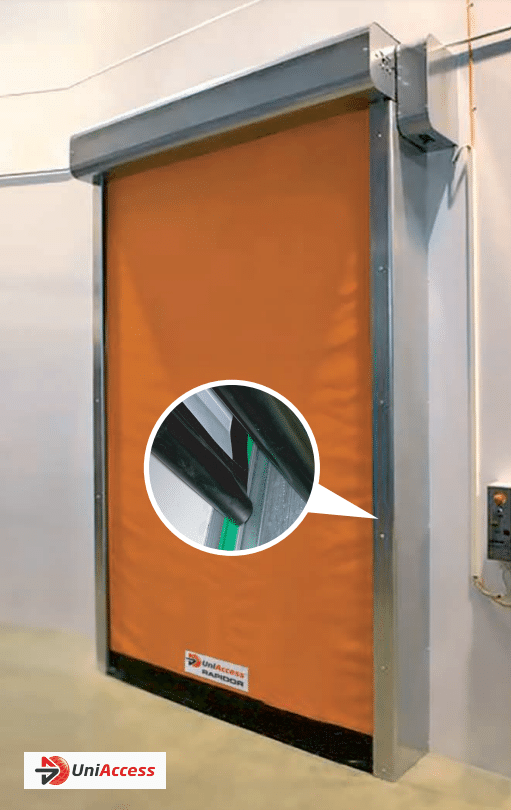

High Speed Door Rapidorยฎ Freeze 2
Key Features
- Impactable, Frost-Free Double Curtain
- Galvanized or Stainless Steel Header
- Galvanized or Stainless Steel Side Columns
- Self-Lubricating Polyethylene Tracks
- Soft Bottom Safety Edge and Photo Eyes
Major Benefits
-
Superior Performance
Resistant fabric and operating speeds of up to 100 inches per second ensure temperature protection up to -40ยฐF.
-
Energy Efficiency
Minimal heat transfer and dead airspace created by innovative double curtain deliver energy savings at lower costs.
-
Proven Safety
Soft bottom edge, safety sensors, and automatic breakaway system prevents damage from accidental impacts.
General Specifications
- Maximum Size: 12โ W x 17โ H
- Opening Speed: up to 100 in/sec*
- Closing Speed: 32 in/sec
- Cold Resistance: -40 ยบF
- High Temperature: 158 ยบF
- Door Operation: Direct-drive motor.
- Side Frame: Corrosion-resistant multi-composite.
- Roll Cover: Fiberglass composite.
- Curtain Types: UV protected multi-layer cross woven polyester fabric with flexible weighted soft bottom edge.
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Panel mounted on/off indicator light
- NEMA 4X enclosure
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz.
- Performance Cycles: 1,000,000
- Motor Mounting options: Motor can be mounted right or left side of the door.
- Safety Devices: Photocell transmitter/receiver type, installed inside the door guides, detects pedestrian and vehicle presence.
- Activation: Remote control, radar sensors, induction loop, pull cord\ switch, proximity sensors, key switch, digital pad.
- Safety Option: Reverse sensing edge.
Curtain Colors
7 Standard Colors: white, yellow, orange, red, blue, light gray, dark gray.

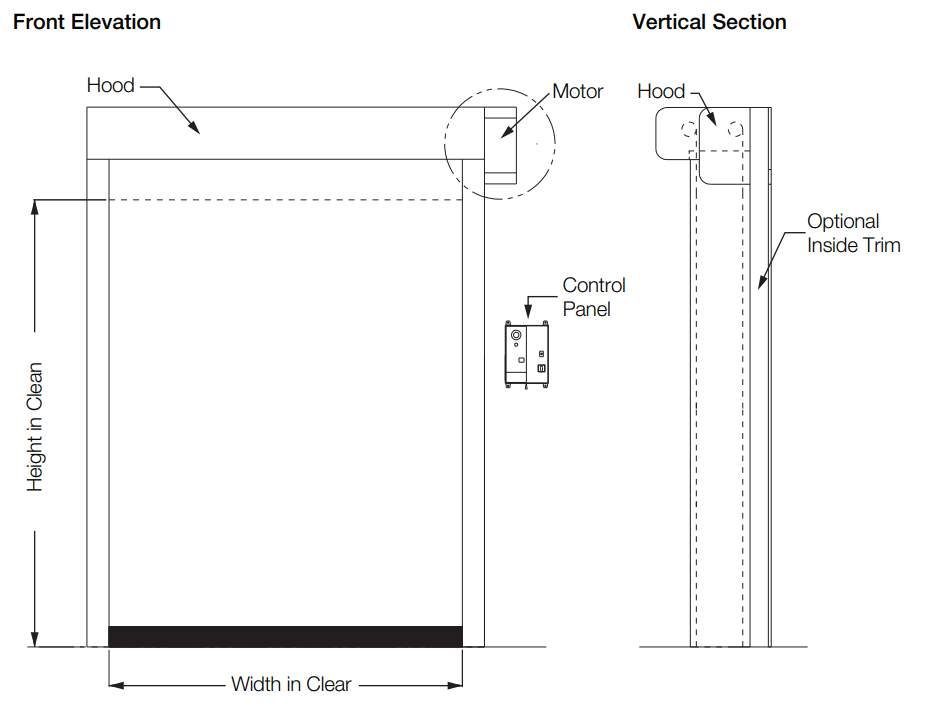

Technical Drawing
