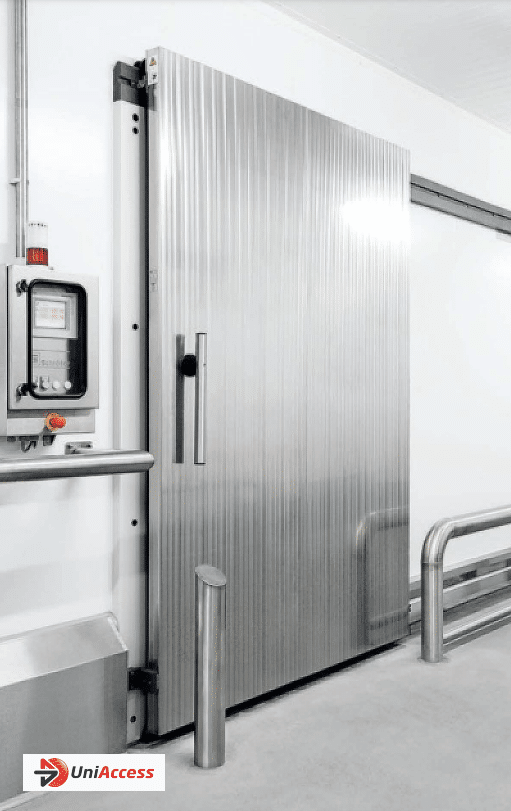

Automatic Sliding Door ThermaCleanยฎ A-Series
Key Features
- Hygienic and Acid-Resistant Steel Panel
- Double Perimeter Sealing
- Durable Full Rubber Gasket
- Covered or Tubular Running Gears
- Custom Opening Aids and Closures
Major Benefits
-
Reliable Performance
Stainless or coated steel door leaf and combined fittings safely ensure freezer requirements ranging from 23ยฐF to -49ยฐF.
-
Thermal Efficiency
Tight-fitting perimeter sealing and gasket eliminates thermal leakage while preventing door leaf from freezing.
-
Streamlined Functionality
Running gears, variable envelope construction, and custom opening aids and closures deliver convenient operational efficiency.
General Specifications
- Application: Chill Room
- Temperature Range: 23ยฐF to -49ยฐF
- Door Leafs: Single-leaf
- Leaf Thickness: 3.25โ PU foam-filled
- Leaf Surface: Galvanized steel sheet, painted or laminated/stainless steel sheet
-
Surface Variants:
- Stainless steel: Stainless steel (circular brush finish, matt brush finish, strip finish)
- Galvanized Steel: Silver, blue, red, yellow, or white
- Track: Stainless steel track
- Max Size: 9.5โ W x 9.5โ H

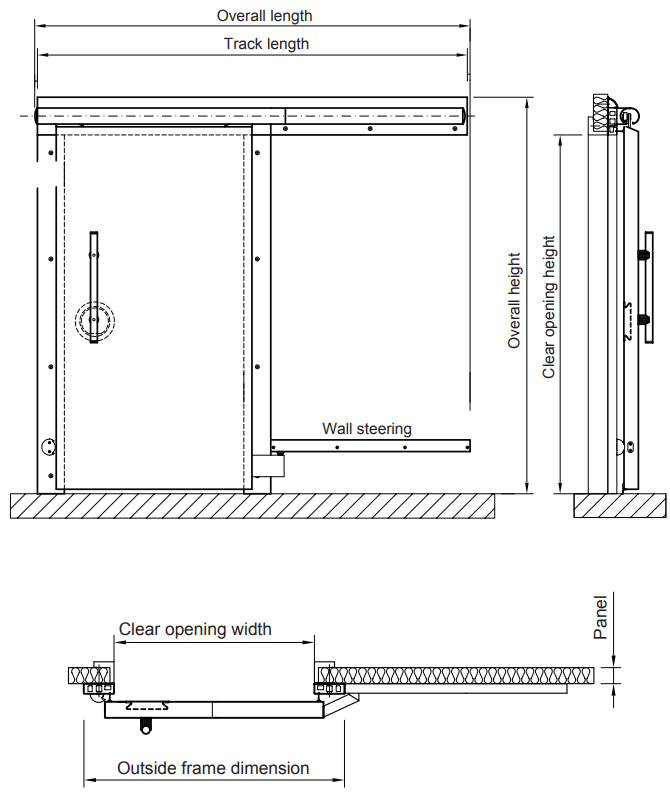

Technical Drawing

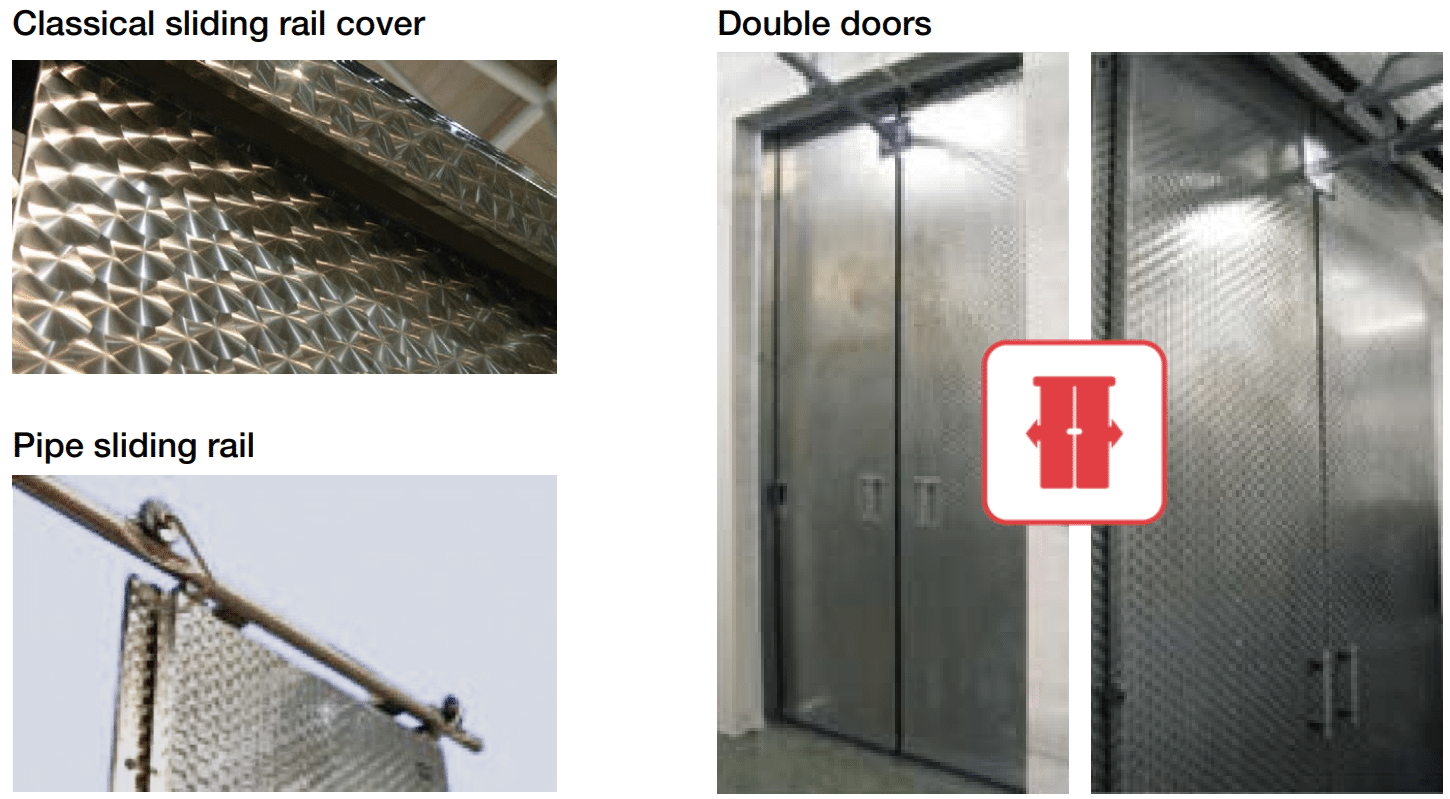

Construction Variants
