Swing Door Thermacleanยฎ I-Series
Key Features
- Hygienic and Acid-Resistant Steel Panel
- Double Perimeter Sealing
- Durable Full Rubber Gasket
- Acid-Proof Steel Hinges
- Latch Lock or Bolt Lock Closures
Major Benefits
-
Reliable Performance:
Stainless or coated steel door leaf and combined fittings safely ensure freezer requirements ranging from 23ยฐF to -49ยฐF.
-
Thermal Efficiency
Tight-fitting perimeter sealing and gasket eliminates thermal leakage while preventing door leaf from freezing.
-
Custom Functionality
Custom opening and locking configurations and diverse panel options deliver proven security and style.
General Specifications
- Standard Size: 11โ W x 14โ H
- Temperature Range: 23F to -49F
- Insulation / Structure: Polyurethane foam and equipped with stainless steel reinforcements, ensuring the durability and rigidity of the construction. Standard equipped thermostat protects heaters from damage while freezer door is not operating.
- Metal Cladding: Stainless steel equipped with CH-type angled door frames. Doors made of coated steel are equipped with more economical overlay door frames.
- Sealing: Two-component, durable rubber seal in a special profile around door perimeter. Soft upper part adjoins door frame, ensuring proper tightness and door functionality
Optional Equipment
Pressure rod control can be executed as a safety lock.
Stainless steel panel or brick wall cover.
Double Door

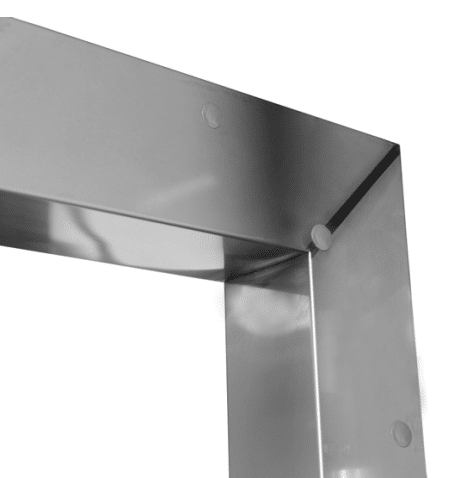

Door Frames & Thresholds
Heated freezer door frames are integrated with steel thresholds and filled with concrete. Angle frame is installed on sandwich panel with an optional panel cover.
Block Frame
Drawing presents classical frame for freezer door without heating and installation on brick wall.
