Vertical Lift Door Thermacleanยฎ
Key Features
- Stucco-Embossed Galvanized Steel Panels
- Foamed-In-Place Polyurethane Insulation
- Corrosion-Resistant Track Hardware
- Polyester-Reinforced Adjustable Gaskets
- Power or Manually Operated Capability
Major Benefits
-
Reliable Performance
Tight-sealing capability and strong construction is designed to safely handle applications of up to 100ยฐF delta T.
-
Space Efficiency
Vertical door positioning maximizes floor and wall space, compared to swinging and sliding alternatives.
-
Proven Durability
Frictionless operation, extruded aluminum structure, and protective hardware and track coating ensure product longevity.
General Specifications
- Standard Size: 11โ W x 14โ H
- Cold Resistance: -40 ยบF
- High Temperature: 100 ยบF
- Door Operation: Manual or automatic
- Hardware / Track: Corrosion-resistant
- Insulation: Filled with 4โ foamed-in-place non-CFC polyurethane insulation with a minimum R-value of 32 at 20 ยบF.
- Warranty: 5 years
Metal Cladding
Stainless Steel
Stucco Embossed
Galvanized Steel
(color options available)

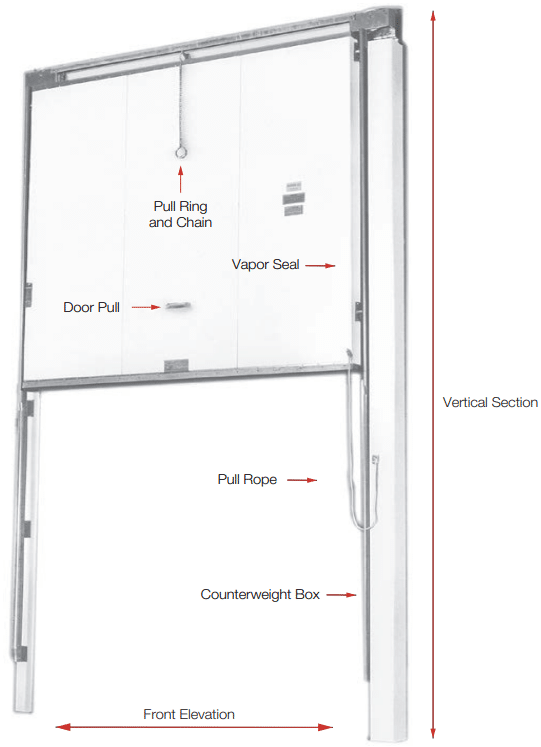

Technical Drawing

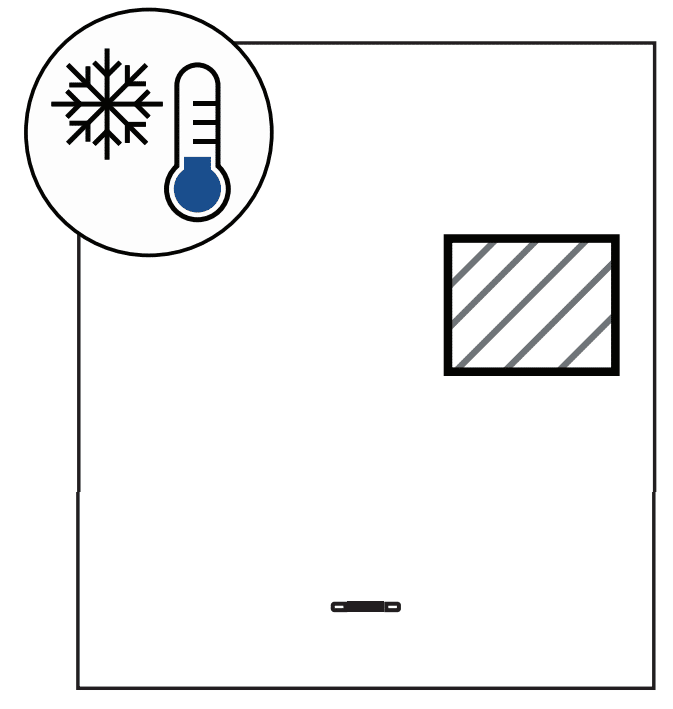

Vision Panels
12" x 14" sealed glass
Cooler Door: 2 layer, 1" thick
Freezer Door: 3 layer, 1โ thick with 120 V.A.C. heat film
