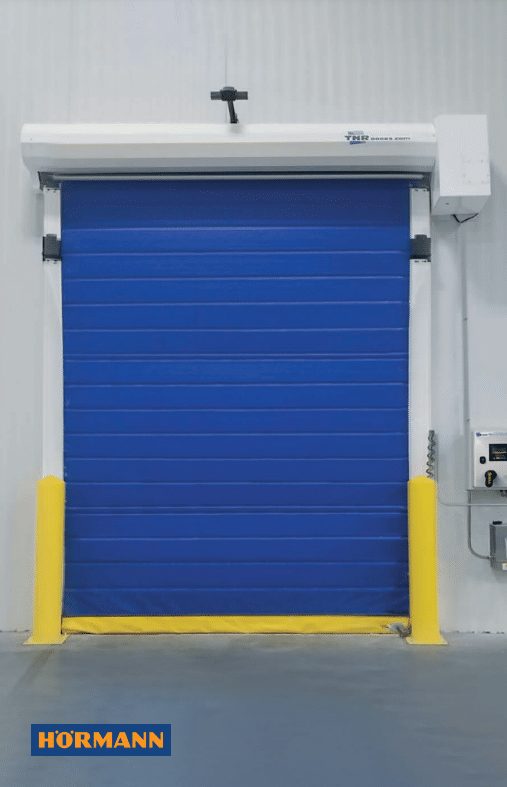

TNR® ChillFast™

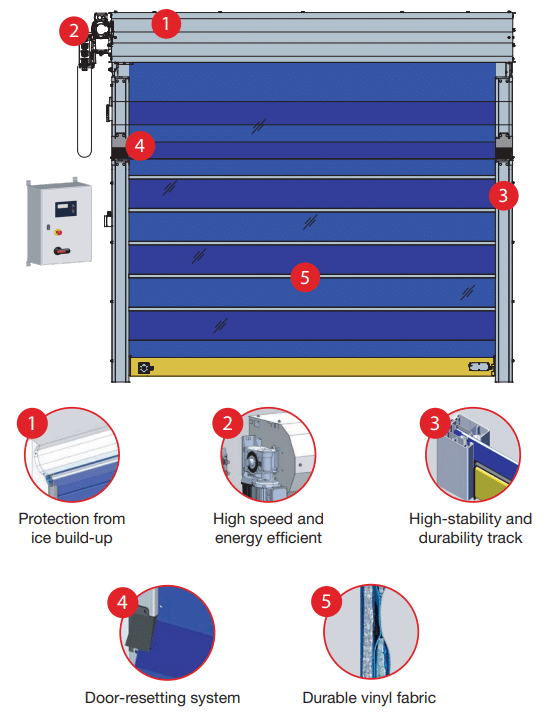

Key Features
- Insulated Vinyl Curtain
- Heated Aluminum Guides
- Heated Soft-Bottom Edge
- Springless Direct-Drive Operation
- NEMA 4X Control Station
Major Benefits
-
Advanced Performance
Operating speeds of up to 95 inches per second and extreme temperature resistance of -22°F maximizes cold storage efficiency.
-
Enhanced Sanitation
Corrosion-resistant mounting assembly and innovative thermal break layer safely prevents airborne contamination.
-
Exceptional Durability
2 - 5-year warranty on drive system and all other components, including workmanship, deliver low cost of ownership.
General Specifications
- Standard Size: 13’W x 18’6”H
- Opening / Closing Speed: 95"/ Sec
- Door Operation: Direct-drive motor – 230 VAC | 0.9 HP | 3PH 60 Hz.
- Guides: Corrosion-resistant multi-composite
- Curtain Types: Composite - 22 oz reinforced vinyl exterior layers, dual reflective foil layers, sealed air bubble core insulation
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Panel mounted on/off indicator light
- NEMA 4X enclosure
- Safety Devices: Photocell transmitter/receiver type, IP 67, installed inside the side guides detects the presence of a pedestrian or a vehicle
- Safety: Traffic lights / motion + presence detection / light curtains
- Air Curtain System: Heated or non-heated air blower with plenum and mounting hardware.
- Finish Cover: White powder-coated aluminum hood, stainless steel, or galvanized steel.
- Activation Devices: Floor Loops, Pull Cord, Falcon Eye Motion Sensors, Laser Scanner
Floor Loops
Pull Cord
Falcon Eye Motion Sensors
Laser Scanner
Technical Drawing
