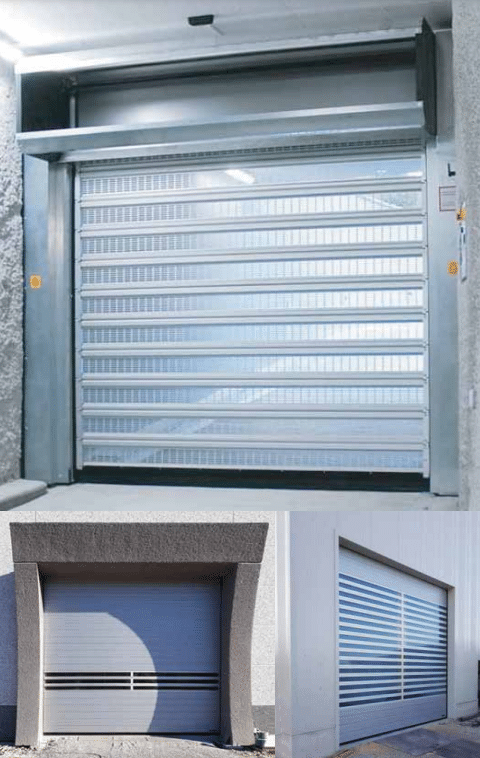

CoilTherm™
Key Features
- Insulated and Pre-Painted Aluminum Panels
- High-Density Polyethylene Guides and Spiral Wrap
- Innovative Springless Counterweight System
- Asynchronous Inverter Duty Motor with Brake
- UL Approved Control Station and Light Curtain Detection
Major Benefits
-
Proven Performance
Operating speeds of up to 60 inches per second provide fast cycle times, improve productivity, and reduce energy waste.
-
Energy Efficiency
Solid, insulated panels deliver superior thermal retention across exterior and interior applications.
-
Exceptional Durability
1,000,000-cycle warranty on innovative springless counterweight system.
General Specifications
- Application: Interior and exterior
-
Maximum Sizes: 20’ W x 20’ H (6 m x 6 m)
- Medium Standard 18’H max
- Large Standard 20’H max
-
Opening Speed:
- 14’ x 14’ and smaller | up to 60” / second
- Over 14’ x 14’| up to 40” / second
- Closing Speed: Up to 20” / second
- Door Operation: Direct-drive motor
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz.
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Panel mounted on/off indicator light
- NEMA 4X enclosure
- Structure: Galvanized steel side frames and motor cover
- Curtain: Pre-painted aluminum in RAL 9006 (white aluminum)
- Guides / Spiral Wrap: Polyethylene PE HD 500
- Cycles: Up to 1,000,000 cycles
- Activation Devices: Floor Loops, Pull Cord, Falcon Eye Motion Sensors, Laser Scanner
Floor Loops
Pull Cord
Falcon Eye Motion Sensors
Laser Scanner

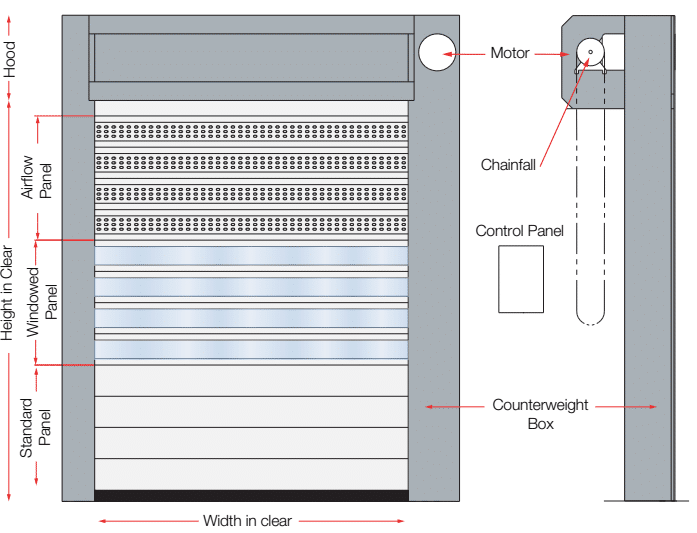

Technical Drawing
Panel Options
Standard Aluminum
Thermal-Acoustic Insulated
Louvered Aluminum
Acrylic Clear View
