Wiejak® Fast-Track™
Key Features
- Flexible PVC or Thick Polyester Double-Leaf Curtain
- Corrosion-Resistant Multi-Composite Frame
- Flush Mounted Photo Sensors
- Direct Drive Panel Operation
- IP56-Rated Control Station
Major Benefits
-
Superior Performance
Operating speeds of up to 98 inches per second reduce harmful air infiltration within controlled environments.
-
Advanced Safety
Horizontal sliding mechanism provides faster protection against contaminants and minimizes the probability of collisions.
-
Energy-Efficiency
Fast opening speeds and superior sealing capability keeps temperatures consistent and reduces energy waste.
General Specifications
- Maximum Sizes: 13’ W x 13’ H (4 m x 4 m)
- Opening / Closing Speed: Up to 2.5 m/s / Up to 1.0 m/s
- Door Operation: Direct-drive motor
- Side Frame: Corrosion-resistant multi-composite frame.
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Protection Class IP56
- Curtain Type: Flexible PVC or 1 mm thick polyester UV protected multi-layer cross woven with flexible weighted soft lateral edge.
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz.
- Safety Device: Reverse-sensing edge
- Activation Devices: Floor Loops, Pull Cord, Falcon Eye Motion Sensors, Laser Scanner
Floor Loops
Pull Cord
Falcon Eye Motion Sensors
Laser Scanner

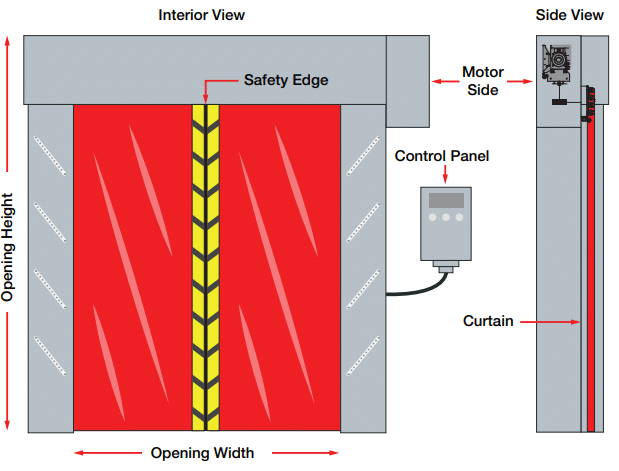

Technical Drawing
Curtain Colors
Available colors of the curtains from the RAL palette.
Ask dealer about custom color options. *Special colors may have an additional fee.

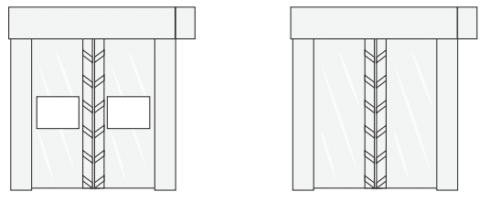

Window Panel Options
