Hormann Clean-Master 20 PAโข
Key Features
- Puncture-Resistant Reinforced Vinyl Curtain
- Galvanized or Stainless Steel Hood and Guide Tracks
- Direct-Drive Panel Operation
- Touchless Sensor Activation
- NEMA 4X Control Station
Major Benefits
-
Proven Performance
Operating speeds of up to 80 inches per second reduce harmful air infiltration within processing environments.
-
Enhanced Sanitation
Tight-sealing capability and a minimal number of moving parts ensure sanitary efficiency for clean room applications.
-
Exceptional Durability
Heavy-duty steel guide tracks and a 2 to 5-year warranty on components, materials, and workmanship deliver low cost of ownership.
General Specifications
- Application: Interior
- Maximum Size: 10โ W x 10โ H
- Opening | Closing Speed: 80"/ Sec | 30โ/ Sec
- Door Operation: Direct-drive motor
- Side Frame / Covers: Galvanized or stainless steel
- Panel Material: Reinforced and puncture-resistant 58 oz. PVC material
- Vision: One full-width, clear PVC starting approximately 52โ off floor
-
Control Panel: Automatic operation with buttons for opening, closing, stop, and emergency stop functions.
- Panel mounted on/off indicator light
- NEMA 4X enclosure
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz
- Power Unit Mounting: Motor can be mounted right or left side of the door.
- Safety Devices: Light curtains
- Emergency Opening: Crank / chain hoist / UPS battery pack
- Activation Devices: Floor Loops, Pull Cord, Falcon Eye Motion Sensors, Laser Scanner
Floor Loops
Pull Cord
Falcon Eye Motion Sensors
Laser Scanner

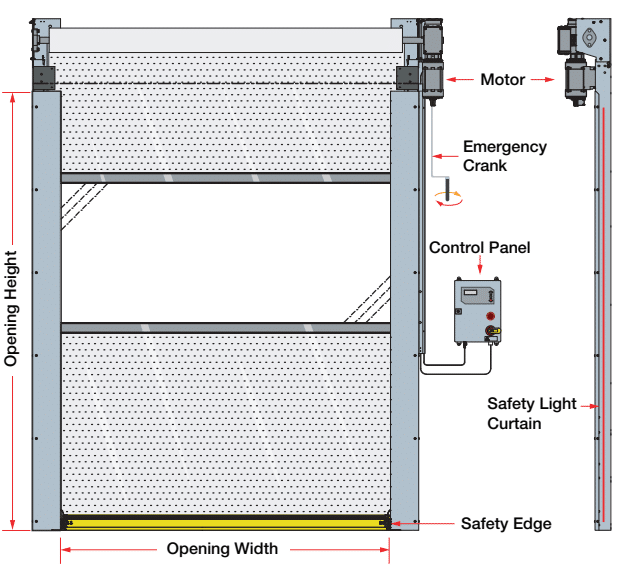

Technical Drawing
Curtain Colors
6 Standard Colors:
- White
- Yellow
- Orange
- Red
- Dark Blue
- Gray
