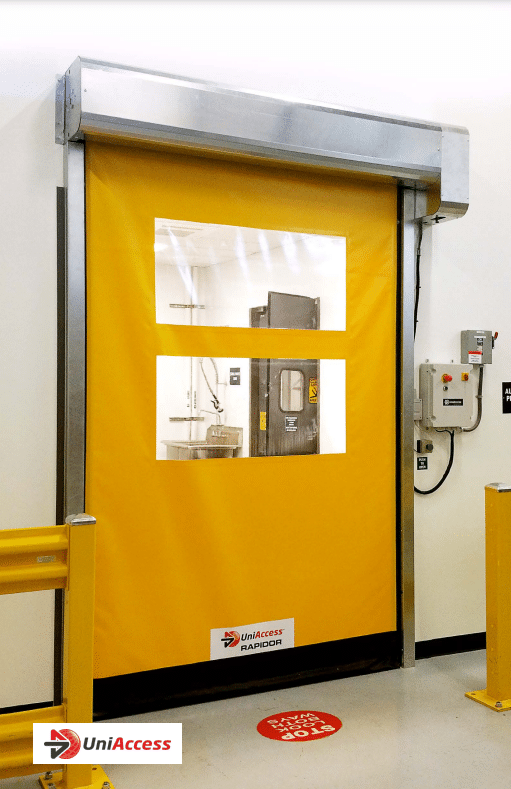

Uniaccess Rapidor™
Key Features
- Wash-Down Resistant Impactable Polyester Curtain
- Corrosion-Resistant Multi-Composite Frame
- Flexible and Fully Sealed Soft-Bottom Edge
- Flush Mounted Photo Sensors and Direct-Drive Motor
- NEMA 4X Control Panel
Major Benefits
-
Reliable Performance
Operating speeds of up to 48 inches per second provide fast cycle times, improve productivity, and reduce energy waste.
-
Proven Safety
Corrosion-resistant frame and superior sealing capability prevents airborne contamination in controlled environments.
-
Low Maintenance
Self-repairing breakaway system and flexible soft-bottom edge neutralizes accidental impact damage.
General Specifications
- Maximum Size: 13’ W x 13’ H (4 m x 4 m)
- Opening | Closing Speed: Up to 48”/sec | 32”/sec
- Door Operation: Direct-drive motor
- Side Frame: Corrosion-resistant multi-composite, U-shaped, galvanized steel, or stainless steel.
- Roll Cover: Fiberglass-composite
- Curtain Types: Reinforced PVC with flexible weighted soft bottom edge
-
Control Panel: Galvanized steel painted RAL 7035, AC drive with integrated logic controller:
- Digital display of status and errors
- LED gives status of all external inputs
- Dry contacts indication door status
- Power Supply: 208/230/480 VAC | 3HP / 60 Hz.
- Power Unit Mounting: Motor can be mounted right or left side of the door.
- Safety Devices: Photocell transmitter/receiver type IP 67
- Emergency Opening: Hand crank
- Safety Option: Reverse-sensing edge
Window Panel Options
Full-Vision
Rectangular
Round
Oval

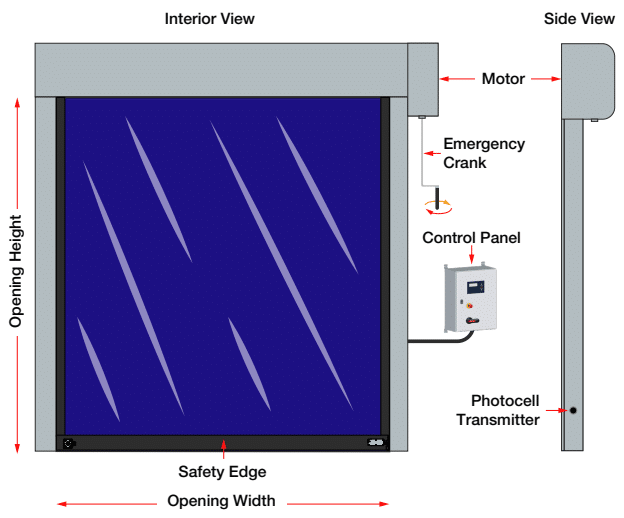

Technical Drawing
Curtain Colors
7 Standard Colors:
- White
- Yellow
- Orange
- Red
- Dark Blue
- Light Gray
- Dark Gray
2 Colors for Insulated Curtain:
- White
- Dark Blue
