Defendorยฎ Buguardโข Automatic Roll-up
Key Features
- Vinyl-Coated Polyester Screen
- Aluminum Side Tracks
- Soft-Bottom Foam Cushion
- Angled Weather Stripping
- Single Phase In-Tube Motor
Major Benefits
-
Proven Safety
Engineered for warehouse and loading dock openings at packaging and processing facilities that rely on strict pest control.
-
Superior Efficiency
Reliable motor and built-in automatic reset system delivers convenient one-touch activation for streamlined operations.
-
Reliable Durability
Tight-weave mesh and foam bottom cushion ensures long-lasting performance in demanding industrial environments.
Technical Specifications
- Maximum Sizes: 14' W (4267mm) x 14โ H (4267mm)
- Opening Speed: Up to 12"/sec (0.31 m/s).
-
Motor:
- 4 Amp, in-tube motor, single phase 120V.
- Constant contact switch activates motor.
-
Head Room:
- 6" to 8" (152 to 203 mm) will be used for header mount applications.
- 8" (203 mm) is needed above the door opening for wall mount applications.
-
Tracks:
- 2" (50.8 mm) wide and 2โ (50.8 mm) deep aluminum tracks.
- Header mount will take up to 2 1/2" (63.5 mm) of side room on each side.
- Weather Stripping: Weather stripping is angled to provide a tighter seal, preventing bugs and insects easy access or entry.
-
Screen Material:
- 17" x 11" (431 mm x 279 mm) high strength, vinyl-coated polyester screen material.
- Reinforced in yellow safety vinyl windbars.
- Options: Fiberglass windbars are available for doors that require added stability.
- Warranty: One year warranty on parts.

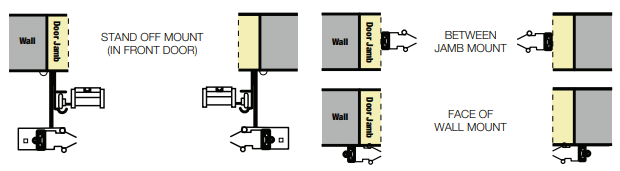

Mounting Options

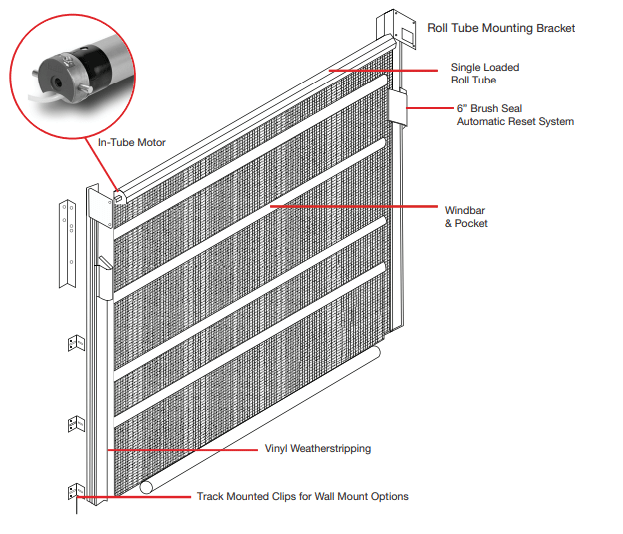

Technical Drawing
Available Colors
Standard Colors:
- Grey
- Yellow
6 Options:
- Tan
- Grey
- Black
- Yellow
- Blue
- Red
