Defendorยฎ Buguardโข Sliding
Key Features
- Vinyl-Coated Polyester Screen
- Galvanized Steel Tracks
- Full-Height Galvanized Pipe Staffs
- Heavy-Duty Ball Bearing Trolleys
- Cane Bolts with Locking Pins
Major Benefits
-
Proven Safety
Engineered for warehouse and loading dock openings at packaging and processing facilities that rely on strict pest control.
-
Custom Functionality
Single sliding or bi-parting design easily accommodates larger openings, providing an economical alternative to roll-up barriers.
-
Reliable Performance
Secure stabilization, locking, and sealing mechanisms deliver effective airflow and sanitation in demanding industrial environments.
Technical Specifications
- Operation: Manual Slide
-
Size Range:
- Unlimited Width x 14โ H (4572 mm)
- Unlimited Width achieved by pairing multiple units
-
Panel:
- Standard 10 oz. / sq. yd. vinyl coated polyester weave screen material.
- Thread Count of 17 x 11
- Optional fine-weave material with thread count of 28 x 11
- Tracks/Mounting: Galvanized steel sliding track hardware mounts under the door opening lintel or on the face of the wall.
-
Panel Stabilization:
- Full-height, 1 1/4" diameter galvanized steel pipe staffs with integral 5/8" cane bolt floor locking pins.
- Pipe staffs are enclosed in high-visibility, vinyl pockets (inside face of curtain only).
-
Mounting Options:
- Header Mount, 3โ (76 mm) required.
- Face of Wall Mount.
- Side Room: Required 1โ of side room per linear foot.
- Warranty: One year warranty on parts.

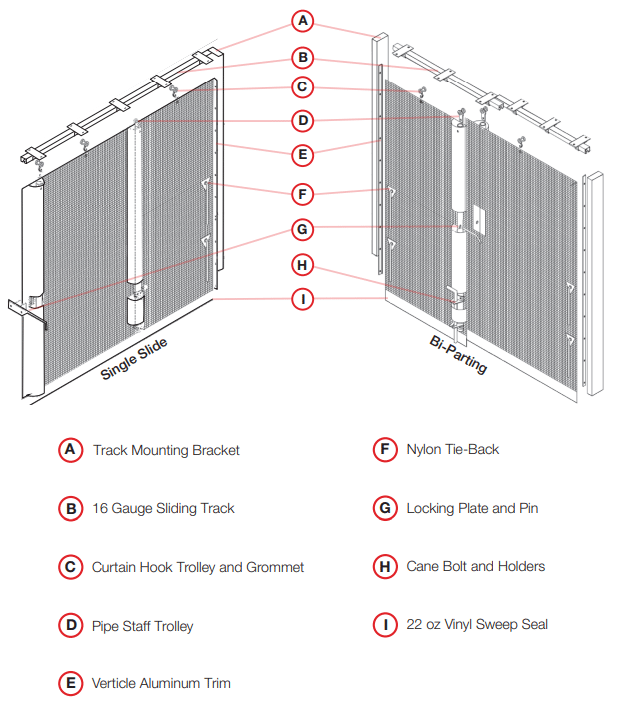

Technical Drawing
Available Colors
Standard Colors:
- Grey
- Yellow
6 Options:
- Tan
- Grey
- Black
- Yellow
- Blue
- Red
