Electric Restraints
Key Features
- Zinc-Plated Steel Housing
- Electromechanical Hook
- IP67-Rated Submersible Motor
- Steel ICC Bar Guide
- Automatic Touch Control Panel
Major Benefits
-
Proven Safety
Hook-style restraint arm with 32,000 pounds of restraining force safeguards against vertical and horizontal trailer movement
-
Reliable Convenience
Wall-mounted design provides an ideal solution for loading dock locations that donโt support ground mounting
-
Energy Efficiency
Electric operation ensures low operating costs and an environmentally sustainable alternative to hydraulic systems.
General Specifications
- Engagement Range:9" (229mm) to 27" (686mm) above ground
- Structure: 5/16โ (8mm) high-strength abrasion-resistant steel
- Coating:ย Zinc-plated carriage, yellow zinc-plated rotating-resistant steel
- Holding Force: Excess of 32,000 lbs (15,875kgs)
- Power Supply: 110/115 volt single phase, 15 AMP service circuit
-
Options:
- Cantilever Mounting Bracket
- Open-Dock Stanchion for Control Box
- Driveway Plate for Ground Mounting
- Green Light Interlock
Product Overview

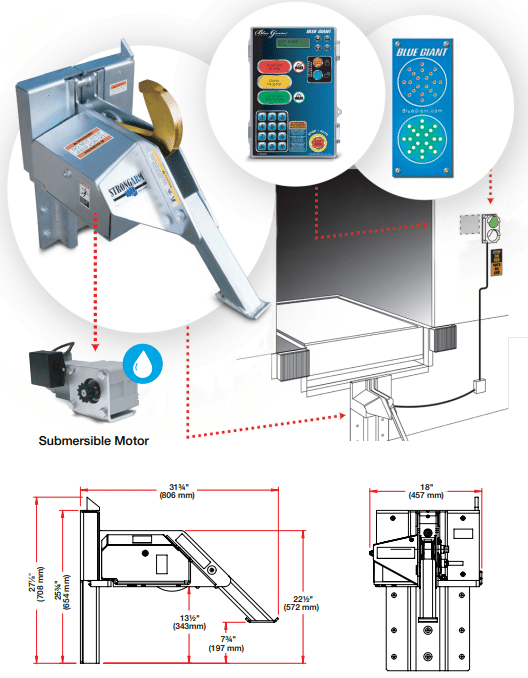

Technical Drawing
