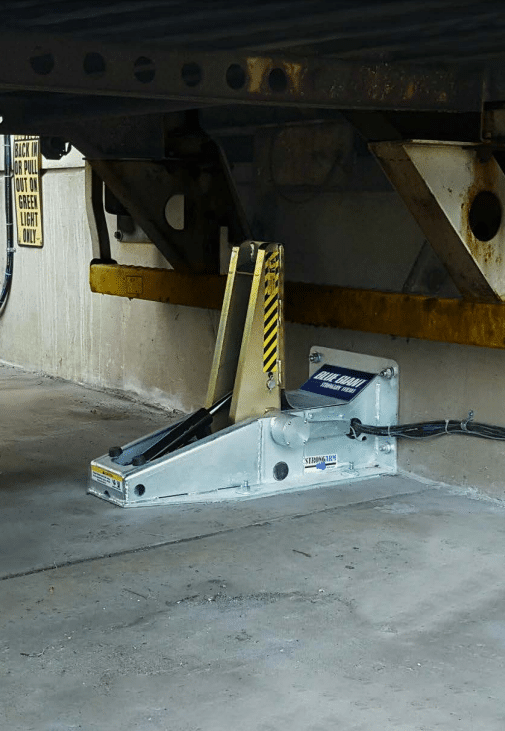

Hydraulic Restraints
Key Features
- Zinc-Plated Steel Housing
- Hydraulic Barrier Arm
- Double-Acting Hydraulic Cylinders
- Intelligent Positioning System Sensor

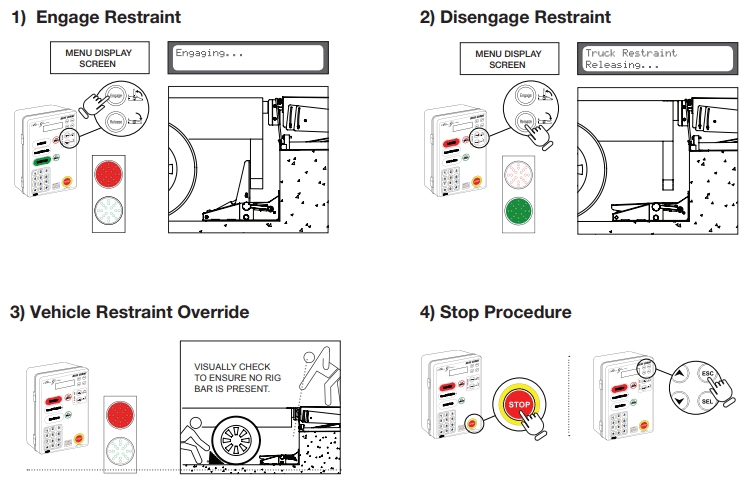

- Automatic Touch Control Panel
Major Benefits
-
Proven Safety
Barrier-style restraint with 35,000 pounds of restraining force safeguards against vertical and horizontal trailer movement.
-
Advanced Performance
Intelligent positioning system (IPS) does not require the use mechanical switches and sensors to detect ICC bar.
-
Low Maintenance
Mechanical lock takes pressure away from hydraulic system, resulting in less wear-and-tear damage and lower lifetime ownership cost.
General Specifications
- Engagement Range:ย 8" (203mm) to 26" (660mm) above ground
- Structure: 5/16โ (8mm) high-strength abrasion-resistant steel
- Coating:ย Zinc-plated carriage, yellow zinc-plated rotating-resistant steel
- Hydraulic Cylinder: Performs fully even during wet or flooded conditions
- Holding Force:ย Excess of 35,000 lbs (15,909 kgs)
- Power Supply: 115/230/400/460 V | 1/3 P
-
Options:
- Cantilever Mounting Bracket
- Open-Dock Stanchion for Control Box
- Driveway Plate for Ground Mounting
- Green Light Interlock
Product Overview
Technical Drawing
