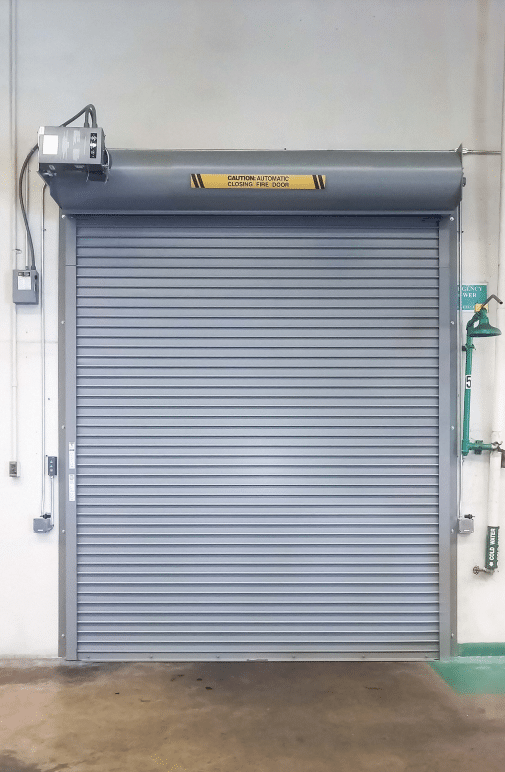

Fire Rated Rolling Steel
Key Features
- Galvanized Steel Curtain with Interlocking Roll-Formed Slats
- Polyester Enamel-Finished Galvanized Steel Hood
- Powder-Coated Structural Steel Guides
- Back-to-Back Powder-Coated Steel Bottom Bar
- Alarm-Activated Automatic Operator
Major Benefits
-
Advanced Protection
Automatic fire door system activates thermally or electrically to contain fire hazards and smoke spreading.
-
Proven Durability
Galvanized steel and powder-coated construction, including corrosionresistant hardware options, deliver a prolonged product lifecycle.
-
Reliable Safety
UL-listed fire protection ratings provide security for 45 minutes, 90 minutes, or 3 to 4 hours.
General Specifications
- Max Width / Height: 34โ x 40โ
- Insulation Material: Polyester
- Standard Mounting: Face of wall
- Operation: Motor or hand chain
- Standard Spring Cycles: 50,000
- Weather Seals: Bottom and exterior curtain-side guides
- Bottom Bar: Primed steel with vinyl weatherseal
- Electrical Motor: 208V / 230V / 460V - 3 Ph | 115V / 230V - 1Ph
- Additional features: Safety-edge / reflective photo eye / touchless activation
- High-Spring Cycles: 100,000
- Rolling Door Protector: Physical barrier at the top of the door that absorbs impacts.
Slats Construction Options
Steel
- Exterior Slat Gauge: 24, 24, 24, 24
- Interior Slat Gauge: 24, 22, 20, 18
Stainless Steel
- Exterior / Interior Slat Gauge: 22
Standard Hood, Fascia and Cover
Curtain Finishes
Mounting Options
Fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.
