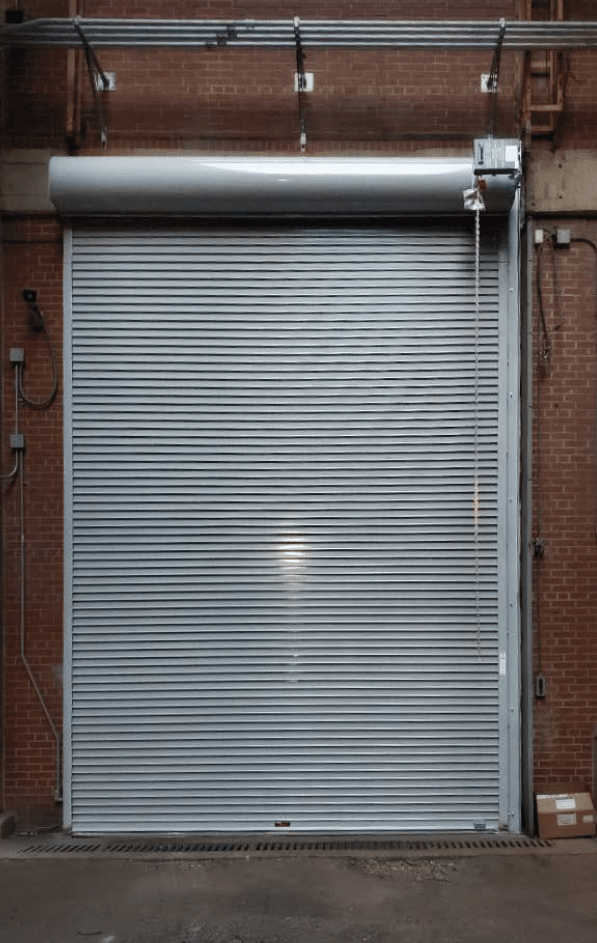

High-Cycle Rolling Steel
HIGH-CYCLE
Key Features
- Galvanized Steel Curtain with Interlocking Roll-Formed Slats
- Powder-Coated Galvanized Steel Hood
- Powder-Coated Steel Guides with Anti-Wear Strips
- Back-to-Back Powder-Coated Steel Bottom Bar
- Compact Direct-Drive Operator
Major Benefits
-
Durable Performance
300,000 cycles of maintenance-free operation delivers exceptional uptime and enhanced productivity in rugged environments.
-
Advanced Functionality
Intelligent control panel communicates real-time door status, while providing easy-to-follow operating instructions.
-
Energy Efficiency
Perimeter sealing system, insulation, and operating speeds of up to 24 inches per second ensure reduced air exchanges.
General Specifications
- Max Width / Height: 30โ X 20โ
- Slats: Insulated and non-insulated
- Standard Mounting: Face of wall
- Standard Spring Cycles: 300,000
- Weather Seals: Bottom, exterior curtain-side guide
- Electrical Motor: 208V / 230V / 460V - 3 Ph | 115V / 230V - 1Ph
- Additional features: Safety-edge / reflective photo eye / touchless activation
- High-Spring Cycles: 500,000
- Light Curtain: Photoelectric sensors that, when interrupted, will send a signal to stop a machine or hazard if an area is breached.
Slats Construction Options
Galvanized Steel
- Exterior Slat Gauge: 24, 22, 22, 20, 18
- Interior Slat Gauge: 24, 24, 22, 24, 24
Stainless Steel
- Exterior / Interior Slat Gauge: 22
Aluminum
- Exterior / Interior Slat Gauge: 18

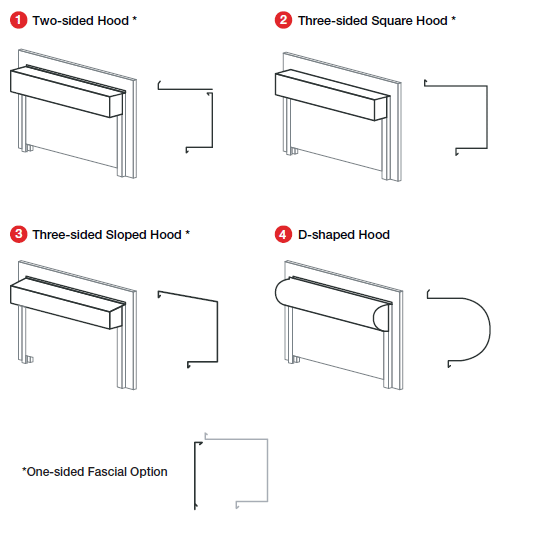

Standard Hood, Fascia and Cover
Curtain Colors
Mounting Options
Fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.
INSULATED
Key Features
- Polyester Enamel-Finished Galvanized Steel Curtain
- Polyester Enamel-Finished Galvanized Steel Hood
- Powder-Coated Structural Steel Guides
- Torsion Spring-Assisted Steel Counter-Balance Shaft
- Powder-Coated Steel or Extruded Aluminum Bottom Bar
Major Benefits
-
Energy Efficiency
Foamed-in-place insulation delivers effective thermal retention and energy savings in climate-controlled environments.
-
Proven Performance
Galvanized and prefinished curtain is designed to meet the requirements of any industrial or commercial application.
-
Low Maintenance
Standard 50,000-cycle rating ensures low life-cycle costs with minimum maintenance requirements.
General Specifications
- Max Width / Height: 30โ
- Insulation Material: Polyester
- Standard Mounting: Face of wall
- Operation: Motor or hand chain
- Standard Spring Cycles: 50,000
- Weather Seals: Bottom and exterior curtain-side guides
- Bottom Bar: Primed steel with vinyl weatherseal
- Electrical Motor: 208V / 230V / 460V - 3 Ph | 115V / 230V - 1Ph
- Additional features: Safety-edge | reflective photo eye | touchless activation
- High Spring Cycles: 100,000
- Heavy-Duty Bottom Bar: 350% stronger than traditional bottom bars.
Slats Construction Options
Galvanized Steel
- Exterior Slat Gauge: 24, 22, 22, 20, 18
- Interior Slat Gauge: 24, 24, 22, 24, 24
Stainless Steel
- Exterior / Interior Slat Gauge: 22
Aluminum
- Exterior / Interior Slat Gauge: 18
Standard Hood, Fascia and Cover
Curtain Colors
Mounting Options
Fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.
